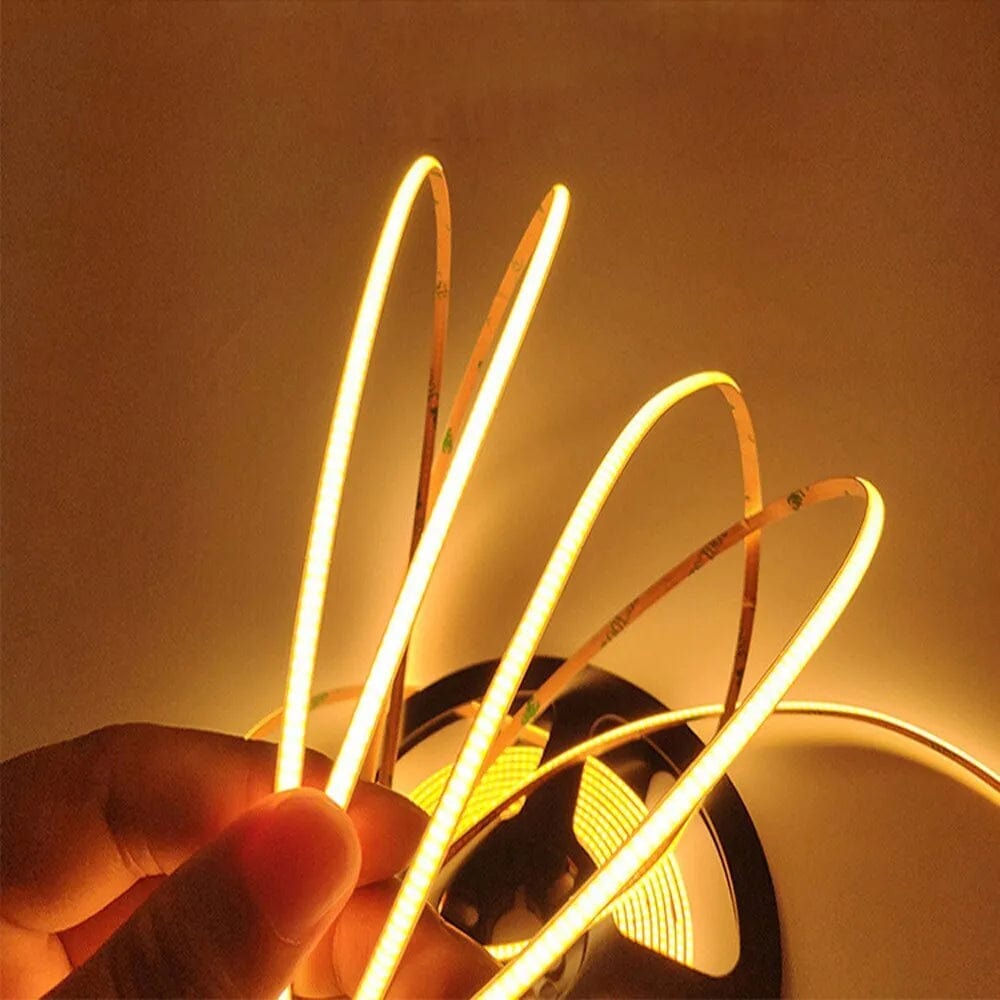

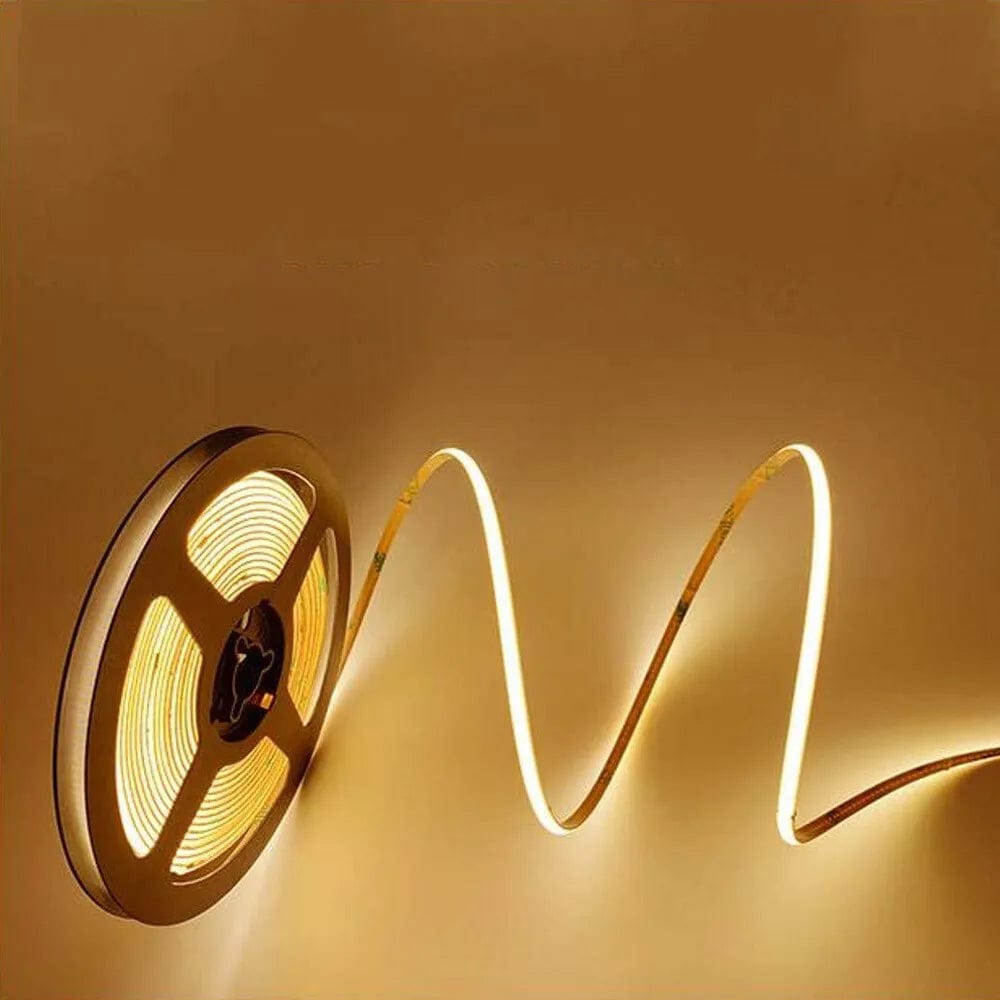

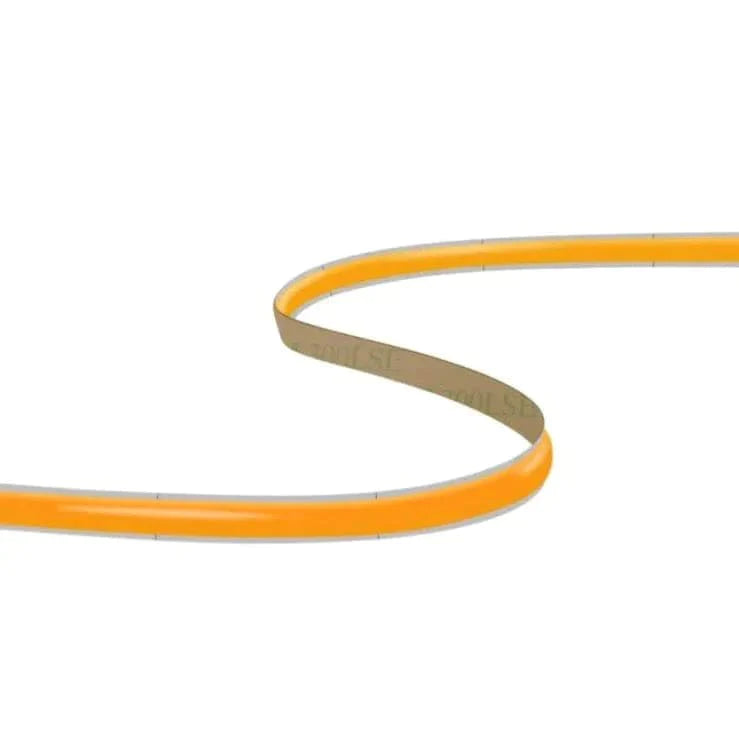

5mm | 7W/m 3000ºK | IP20 | Slim COB Flexible LED Strip Light

SKU

5MM7WIP203K



Translation missing: en.products.product.price.regular_price $25.00
Translation missing: en.products.product.price.sale_price $25.00 Translation missing: en.products.product.price.regular_price
Sale
Sold Out
Tax included. Shipping calculated at checkout.
Description of 5mm | 7W/m 3000ºK | IP20 | Slim COB Flexible LED Strip Light

COB flexible strip light offers a seamless visual linear light, eliminating any visual dots often found with traditional strip light.  Ideal for installations where the LED strip will not be mounted within profile but seen. The dotless design also allows the use of a less opaque (diffused) profile cover. This allows more light to transmitted without having to minimise dots.

This LED strip light is rated at 7W/m

CRI is >90, which provides very high true colour representation.

COB is an acronym for: Chip on Board

The PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.

The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.

This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only.

  • Requires 24V driver (sold separately)
  • Choose from a range of drivers to match the length of flexi-strip required
  • Remote, wall mounted and CONNECT Wi-Fi controllers available as accessories
  • For runs over 5m individual lengths should be connected in parallel
  • Easy clip connector packs available as accessories
Electrical Data
Voltage 24 VDC
Wattage 1m 7 W
Current 1m 0.45 A
LED Data
Package Type COB (Chip on Board)
Chips LED 1
LEDs 1m 480
Photometric Data
Colour Temperature 3000K
Colour Rendering Index Ra >90
Luminous Flux 1m 400
Luminous Efficacy 80
Beam Angle 120°
Dimmable 1 ∼ 100%
Construction / Protection Data
Substrate Double layer FPCB
3oz
Mounting Double sided tape 3M 9080
IP Rating IP20
Operating Temperature -20 ∼ +70 C°
Storage Temperature -20 ∼ +50 C°
Dimensions
Cutting increments 50.0mm
Length 5m
Width 5.0mm
Height 1.2mm
Lifetime
Working Life 50,0000 hrs
